Descriere
Invertor de sudură multiproces SEM, MIG - MAG, WIG AC / DC pulsat, trifazic.
Type:
Digital/Micro-controlled IGBT Inverter
Output /Process Type:
MIG, DC TIG, DC Stick
Voltage/phase:
DUAL VOLTAGE 400 3 PHASE
Max Rated MIG Amps: 250A
Max Rated TIG Amps: 250A
Max Rated Stick Amps: 200A
MIG Amps/Volts @ Rated Duty Cycle:
250A/26.5V @ 60% Duty Cycle/40º C
TIG Output Amps/Volts @ Rated Duty Cycle:
250A @ 60% Duty Cycle/40º C
Stick Amps/Volts @ Rated Duty Cycle:
200A @ 60% Duty Cycle/ 40º C
OCV:
- MIG: 74V
- TIG: 74V
- Stick: 74V
MIG Output Range:
30A-250A/15.5V-26.5V
TIG Output Range :
- DC: 10A-250A/AC: 15A-250A
- This unit is AC and DC capable
- (High Frequency or Lift Start operation)
Stick Output Range:
10A-200A
Variable MIG Inductance/Stick Arc Force Control:
Yes
Spool Gun Capable:
Yes
Pulse:
Single
Pulse Frequency:
No MIG Pulse, TIG Standard AC and DC Pulse and NEW! Advanced AC Pulse only:
Standard AC/DC TIG Pulse: .5-150Hz
Advanced TIG AC Pulse: .5-10 Hz
Pulse Time On:
TIG: 5-95%
Pulse Volts:
- 3-95% of TIG Amps

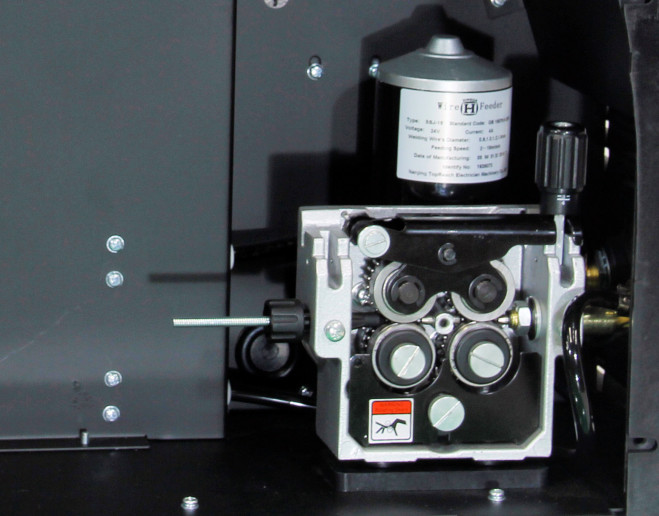

Standard Drive Roll wire size:
.030”-.045”
Separate wire feeder:
No, self contained
Number of Drive rollers:
4
Max Wire Feed Speed:
60-600 IPM
Max Wire Roll Diameter:
12” (full size up to 44lb)
Weight: 83 lb / 19,5 kg
Memory:
Yes
Upslope Time:
TIG: 0- 10 Seconds
MIG (Run-in):0-1 Seconds
Down Slope Time:
TIG: 0-10 Seconds
MIG (Crater Fill): 0-2 Seconds
Preflow time:
0-10Seconds
Post Flow Time:
0-10 Seconds
Foot Pedal:
Standard
Flux Core:
Yes, Optional
Air Carbon Arc:
No
2T/4T /Torch latch/Trigger:
Yes
Other Features:
- High Frequency Start and Lift TIG start in TIG Mode
- Pulse TIG with AC and DC output for Aluminum, Steel, and Stainless
- Advanced AC Pulse (mix of AC and DC-) improves high end penetration and low end handling
- Advanced Squarewave, Soft Square Wave, Triangular and Sine Wave AC TIG for advanced Aluminum welding capability.
- MIG with Inductance Control
- Stick Arc force Control
- Stick Hot Start Duration Control
- Stick Hot Start Intensity Control
- E6010 setting with hot start
- Spot Time .5-15 Seconds
- Stitch Time 0-15 Seconds
- TIG AC Frequency 20-200Hz
- TIG AC Balance 30-70% of EP
- Burn Back Time 0-2 Seconds
- Inductance/Arc Force 1-100%
- All new Synergic Power Set Feature

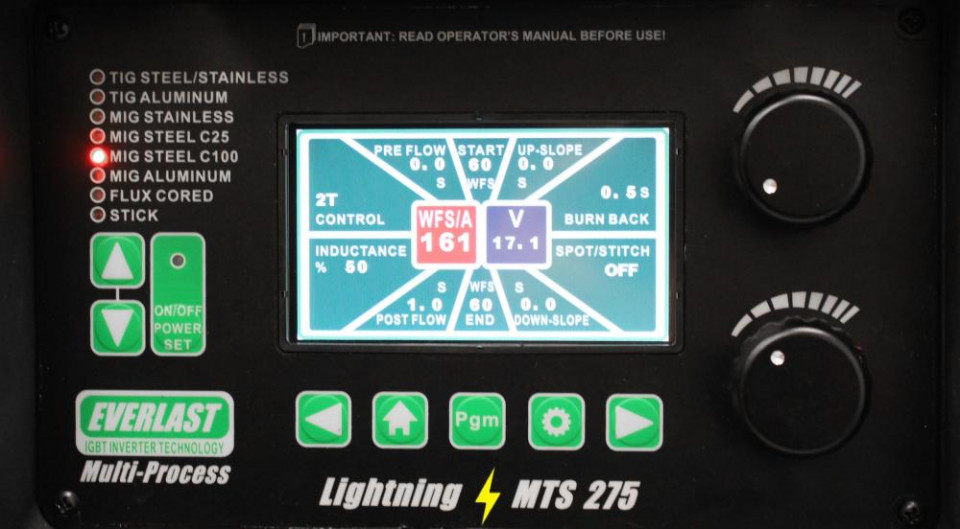

- 4.3" Digital 480 Resolution TFT Display
- NEW! Power Set/Synergic Feature in all modes.
