Invertor sudura multiproces LASCENTRUM MIG/TIG-200 AC/DC

Name: Invertor sudura multiproces LASCENTRUM MIG/TIG-200 AC/DC
Brand: Lascentrum
SKU: 317.MIG/TIG-200 AC/D

Descriere

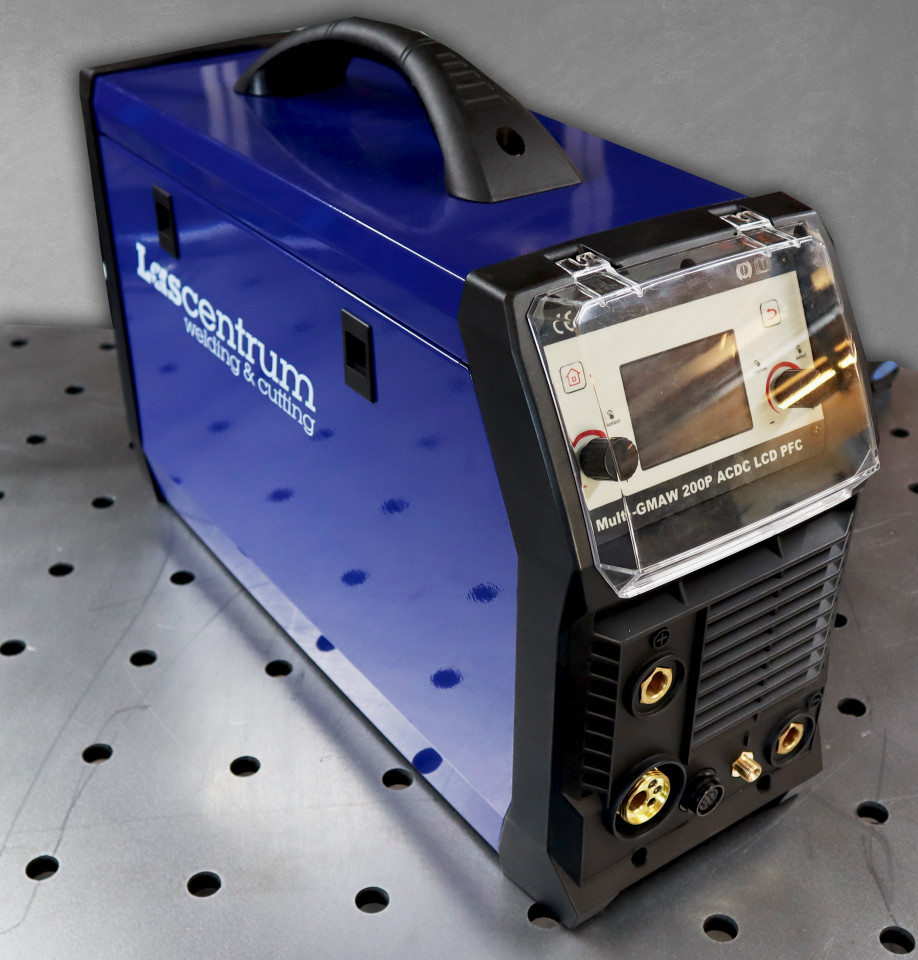

Invertorul de sudura multiproces LASCENTRUM MIG/TIG-200 AC/DC permite sudarea SEM, MIG-MAG (sinergic) si TIG (CC sau AC)

Se livrează cu set de cabluri SEM, pistolet WIG cu butoane de reglare a curentului pe mâner, telecomandă de picior wireless.

Accesorii opționale:

Power Supply Voltage(V)	1~110/120/130±10%					1~220/230/240±10%
	MIG	TIG(DC)	TIG(AC)	MMA(DC)	MMA(AC)	MIG	TIG(DC)	TIG(AC)	MMA(DC)	MMA(AC)
Rated Input Power(KW)	3,7	3,3		4,1		6	4,5		7
Rated Input Current(A)	35	33		36,5		28	21		30,5
	17,5	16		18,2		14	10		15
Duty Cycle (40℃ 10 Min)	25% 140A 60% 90A 100% 70A	25% 160A 60% 105A 100% 80A		25% 130A 60% 85A 100% 65A		25% 200A 60% 130A 100% 100A
Welding Current Range(A)	40~140	5~160		5~130		40~200	5~200		5~200
No load Voltage(V) Net Weight(kg) Dimmisons(mm)	75
	15
	642210380
Wire Diameter(mm) Up/Down Slope(s)	Fe: 0.6/0.8/0.9/1.0 Ss:0.8/0.9/1.0 Flux-Cored: 0.6/0.8/0.9/1.0

Pre/Post Flow(s)	0.1-10/1-10
Pulse Frequency	0.5~200
Pulse Width Range	5~95
Ac Frequency Insulation Class	50~250
	H
Protection Class	IP 23
	85%
Cooling	AF
